۳kV line-to-ground and 1kV line-to-line protection allows operation under harsh weather conditions and unstable electrical installations.
LigoDLB 5-15ac
۵۰۰+ Mbps mid-range wireless device
۵۰۰+ Mbps throughput – a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of ash memory the, LigoDLBac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation – 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLBac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.
[us_single_image image=”6392″ size=”full” align=”center”]

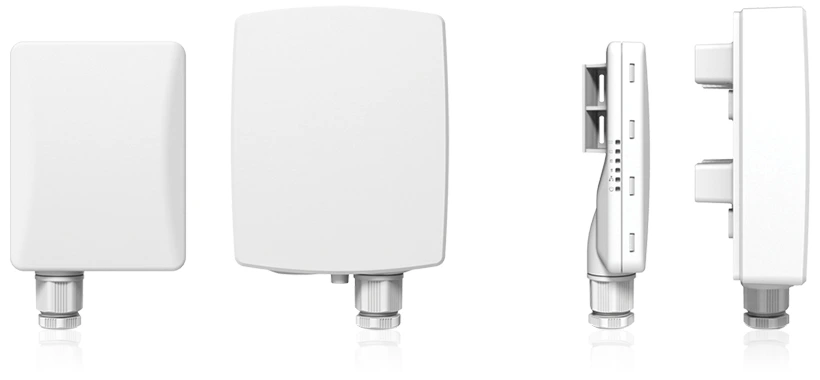

Small form factor
The shape of the enclosure is now smaller, lighter but retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.
Integrated Surge Protection
[us_single_image image=”6007″ size=”full” align=”center”]

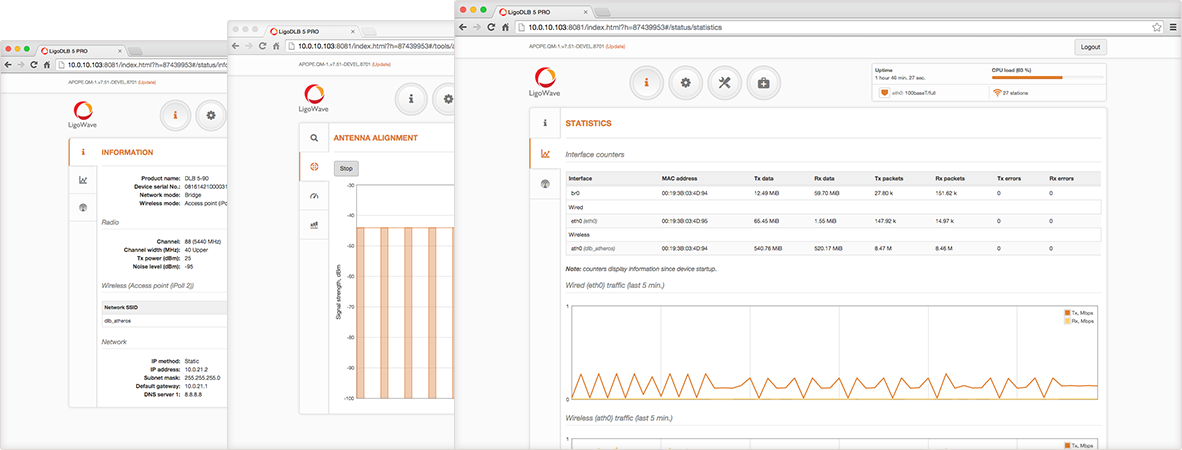

LigoWave OS
LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design.
[us_single_image image=”6420″ size=”full” align=”center”]
iPoll 3: Enhanced Performance Protocol
LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.
[us_single_image image=”6421″ size=”full” align=”center”]
Specification
Distance recommendations (max):
PTP mode: 7 km (4.35 mi)
PTMP mode: 5 km (3.11 mi)
Interfaces:
۱ x 1000 Base-T (passive PoE 24V)
۵۰۰+ Mbps capacity
High power (30 dBm) radio
Proprietary protocol (iPoll)
Zero loss design
Integrated surge protection
Lightweight design
