LigoDLB 5-20n

Highlights:

۵٫۱۵۰ – ۵٫۸۵۰ GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
۸۰,۰۰۰ PPS
۱۷۰ Mbps capacity
High output power 29 dBm radio
Integrated dual-polarized 20 dBi directional panel antenna
Powerful OS
Smart polling data transmission protocol (iPoll 3)
Meets IP-66 certification
Free WNMS (WNMS – Wireless Network Management System)
Responsive HTML 5 based GUI
Wall and pole mounting option

[us_single_image image=”6087″ size=”full” align=”center”]

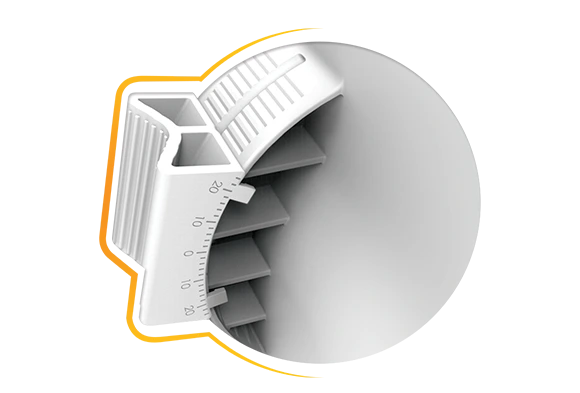

Innovative mounting bracket

The adjustable mounting bracket is very easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole.

[us_single_image image=”6088″ size=”full” align=”center”]

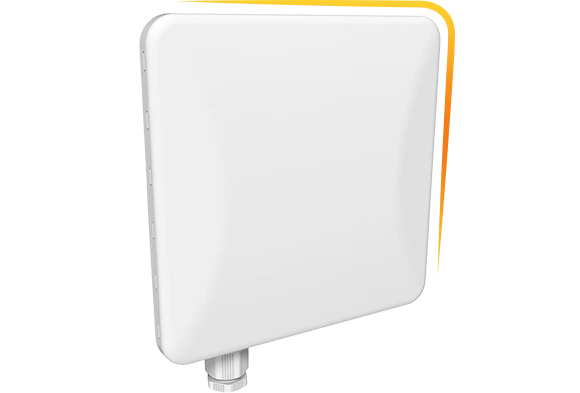

Small form factor

The shape of the enclosure is now smaller, lighter but retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.

Up to 40% lower shipping cost

Decreased form factor significantly shrunk the package size, which allows saving up to 40% of shipping cost comparing to a previous LigoDLB 5-20 model. Shipping savings have been calculated comparing road and air freight fees from the most popular couriers like DHL, UPS etc.

[us_single_image image=”6089″ size=”full” align=”center”]

حداکثر فاصله در حالت PTP

15km80%
80%

حداکثر فاصله در حالت PTMP

10km60%
60%

New Hardware platform

Powerful new generation CPU ensures better performance delivering higher up to 170 Mbps capacity and almost 2 X higher packet per second rate (80000). Narrow (5 and 10 MHz) channel support ensures steady performance in noisy environments. More RAM improves the performance with multiple users connected to a single base-station and larger flash stores a 2nd failover firmware image.

Integrated surge protection

۳ kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.
[us_single_image image=”6007″ size=”full” align=”center”]

LigoWave OS

LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design.

[us_single_image image=”6420″ size=”full” align=”center”]

iPoll 3: Enhanced Performance Protocol

LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.

[us_single_image image=”6421″ size=”full” align=”center”]
